VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance

Name: VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance
Brand: VEIKONG
Price: 1 USD

China VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance wholesale

Brand Name : VEIKONG

Model Number : VKS

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T, L/C, D/A, D/P, PayPal

Supply Ability : 15000pcs per Month

Delivery Time : 3 days, depend on the order quantity

Packaging Details : Carton and Wooden Box

Product Name : 630A 800A 1000A 1200A 3 Phase Output EMC EMI Filters

Current : 5A-1200A

Rated Voltage : 380V-440VAC

Customized : Acceptable

Type : EMI Filter

Transfer Function : Low Pass

Original : China

Color : Silver

Quality : Well

Brand : VEIKONG

Contact Now

The introduction of VEIKONG company

VEIKONG is the top 10 VFD supplier in China and we also have many other reactors related like the filters, reactors ect.

Besides, we have our onw R&D to update VEIKONG product both hardware and software to improve the product quality and some inner software problem.

Of course, we can also support OEM service, since we also have the patent for our own design inverters.

If you have any interest, please feel free to communicate with us.

VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance

630A 800A 1000A 1200A 3 Phase Output EMC EMI Filters For AC Motor VFD

Product feature

General purpose filter with IEC connector providing effective line-to-ground noise up to 10 amp., 250VAC

Low cost

Compact design

250 Faston terminals (YA-T1)

Solder lug terminals (YA-T3)

All parts are approved by UL, CSA, VDE, SEMKO, NEMKO, DEMKO and FIMKO

The values of CX,CY are optional.

With or without resistor.

Specification

Rated Voltage	AC 380-480V
Test Voltage (1 minute)	Phase to phase DC 1500V
	Phase to ground AC 1500V / DC 2500V
Operating Frequency	50/60HZ
Range of Temperature	-25 to 85℃
Insulation Resistance	Phase to ground (up to 300A) ≥ 1500MΩ

Application

General purpose three phase filtering

Three-phase motor drives

Inverters and converters

UPS and SMPS

Industrial automation equipment

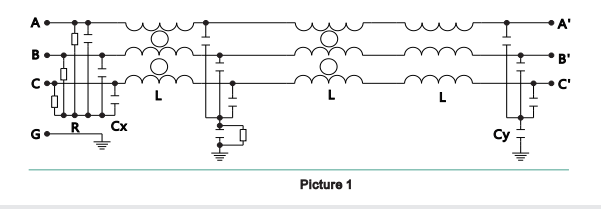

Electrical Diagram

VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance

Product Size

VEIKONG 3 Phase VFD Filter for General Purpose Noise Suppression and Insulation Resistance
